The new compact Hydrim is available now!

The use of automated instrument washer-disinfectors is growing worldwide as regulatory authorities and dentists endorse and adopt what has come to be understood as the most effective and consistent means of disinfecting instruments prior to terminal sterilization.

• Effective sterilisation begins with the HYDRIM C61w G4 instrument-washer.
• The HYDRIM automatically washes rinses, and dries dental instruments, simply by pressing a button on the touchscreen.
• The HIP ULTRA cleaning solution is kinder to your instruments as the liquid detergent rapidly and fully disperses, unlike powder detergent, which can form clumps and compromise the efficiency of the washing process.
• The HYDRIM G4 is equipped with a web interface that enables online access and offers a platform with endless possibilities.

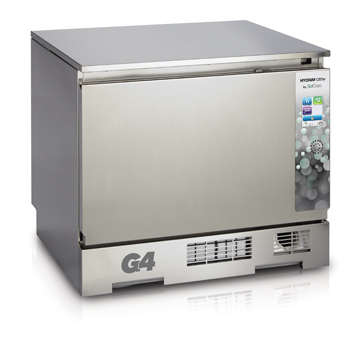

HYDRIM C61w G4 Instrument Washer

Featuring a stainless steel exterior, the HYDRIM C61w G4 is equipped with the latest technology and the same connectivity attributes as the STATIM G4.

Fast

The HYDRIM C61w has a 6-full sized cassette capacity – the biggest of its kind. This means that the office can turnover 120 instruments in 35 minutes, start to dry.

Effective

The tabletop footprint allows for under counter or counter top installation, so that offices have flexibility in maximizing their workspace in the reprocessing area. In addition, the time saved by automated washing compared to ultrasonic cleaning is approximately 1 hour of labour for every nine procedural set-ups[1]. The increased efficiency translates to the HYDRIM C61w G4 paying for itself in about 38 months[2].

Connected

Boasting the G4 technology, the HYDRIM C61w G4 is capable of emailing anyone the office chooses, including Technical Service personnel. It also allows remote access for easy troubleshooting. The automatic user interface software upgrades ensures the user will always have access to the most recent version and features, such as instructional slideshows of routine maintenance procedures, updated screensaver images, and more.

Serviceability

Designed from the ground-up by SciCan engineers, the HYDRIM C61w G4 encompasses over 10 years of experience in instrument washers. The modular design of the covers makes it easier to access specific components. The single screw type means it’s only one type of screwdriver that is needed to remove the panels. Handles and bumpers facilitate turning the unit on its back to access all the critical components, located underneath the unit. The HYDRIM C61w G4 was designed with the technician in mind.

Please take a moment to view our videos on SciCanTV:

• HYDRIM C61w G4 Information: above or here
• G4 Installation:

Included with the purchase of a unit:

• HYDRIM C61w G4
• Water feed hoses and drain tubes
• Water hardness test kit
• Salt and funnel for regeneration unit
• 3 Cassette / 2 Basket Rack
• Basket with hinged lid

NOTE: One pouch of HIP Ultra is included with the purchase of a unit, Cases of it must be ordered separately.

Available are the following:

Pre-Installation Document (SD-414): This is imperative that sales/technicians run through this list with the office before the purchase of a unit to ensure that all the spacing, plumbing and electrical requirements are met.

Installation Instructions (95-113166): A copy of this document is included with each unit. Please adhere to these instructions to ensure seamless operation of the unit.

This is a very exciting time for the body art industry, as the integration of the G4 technology in the HYDRIM and STATIM in a pioneering technology that makes it easier for body art studios to focus on their business, and not on administrative tasks.

CONNECT	PROTECT	COLLECT
The HYDRIM G4 is capable of communicating directly with service personnel or anyone you choose. Should the HYDRIM G4 ever need attention, diagnostic information can be sent via email to pre-selected dealer service reps, significantly reducing down time.	Patient safety relies on attention to detail. The HYDRIM G4 supports verifiable processes that are PIN protected with user-defined IDs so that staff members can be required to authorize a cycle. This encourages extra attention to process and creates a safer environment for both staff and patient.	With each cycle, information must be stored to protect your office and your patients. The integrated data logger store all cycle information for the lifetime of the unit. A USB port allows for the manual retrieval of cycle history. The 10/100 Base-T Ethernet connection puts your PC in direct contact with your HYDRIM G4 and the RS232 serial printer port allows you to connect with an external printer.

HYDRIM MEETS THE INTERNET

A high-resolution, 65K color touch screen offers a vivid display of messages, current cycle information and customizable colors all with extraordinary clarity. Fully adjustable contrast levels let you optimize the screen to the lighting in your steri-center, and its 2.5-inch by 3-inch dimensions allow easy viewing of cycle information.

---

HYDRIM C61w SPECIFICATIONS
Dimensions: (w x h x d)	598 x 520 x 526mm (23.5” x 20.5” x 20.7”)
Depth with door open:	82.9 cm / 32.6
Weight:	40 kg / 88 lbs
Cycle Times*	Rinse and Hold 5 mins
Regular Wash + Dry	16 mins. + 10 mins.
Heavy Duty Wash + Dry	20 mins. + 10 mins.
Water Consumption Per Cycle:
Rinse and Hold	7.6 litres / 2 gallons
Regular Wash	11.5 litres / 3 gallons
Heavy Duty Wash	11.5 litres / 3 gallons
Electrical Connection
Electrical Rating:	208-240V, 12A, 60 Hz
Running noise:	< 65 dB
Water and Drain Connections
Hot and Cold Water Tap Connection	3/4” Garden hose, male
Recommended Hot Water Temperature	60°C / 140°F
Cold Water Temperature	< 30°C / 86°F
Inlet Water Pressure	1 - 10 bar / 14.5 - 145 psi
Drain	2 cm / 3/4”

[1] Tholen, Mark, 10 Ideas to Increase Production and Decrease Expenses in Sterilization. (http://www.dentaleconomics.com/articles/print/volume-99/issue-10/features/increase-production-and-decrease-expenses-in-sterilization.html)

[2] Based on average utility costs in New York and a 5 chair office
